The new Innuos STREAM range of streamers replace the PULSEmini, PULSE and PULSAR.

The Innuos ZEN and ZENith MK3 music servers have been replaced by the ZEN NexGen (NG) and ZENith NexGen (NG)

The Statement NG models remain unchanged.

Both the new STREAM and ZEN ranges are modular and can be customized with options that include external Linear Power Supply Units, SSD storage, multiple DAC options, S/PDIF output, and Phoenix re-clocker modules etc.

For more information and prices, please contact Gary at BorderPatrol Audio Electronics

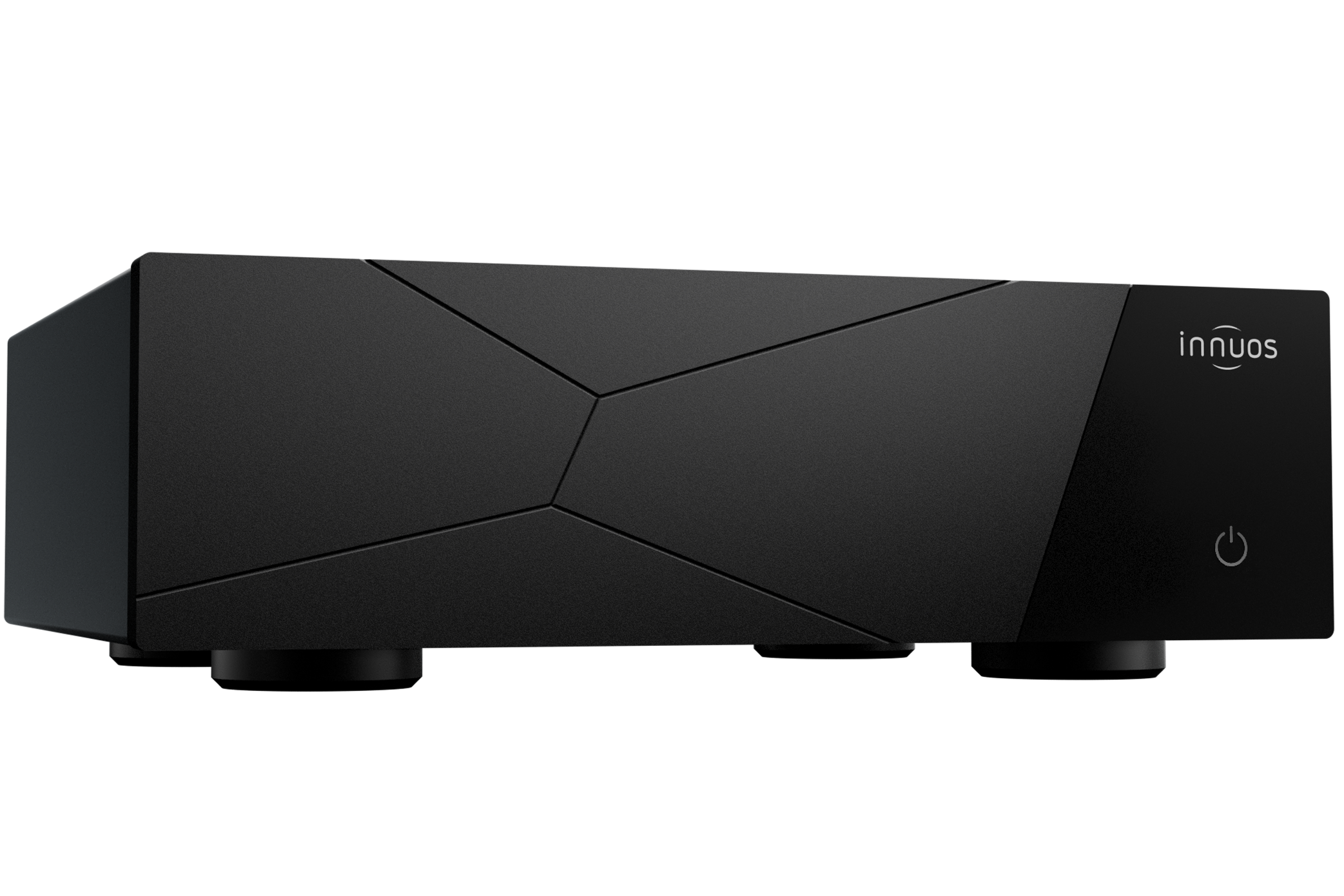

STREAM1

Innuos entry-level streamer and server, with user-accessible SSD storage
and high-quality CX power regulation to support a range of specialized
output modules to maximize sound quality.

The optional Linear Power Supply 1 (LPS1) add-on upgrade is available.

Standard Features include:

Custom mainboard, 13th gen Intel Quad-Core CPU. 8GB DDR5 Industrial-Grade RAM
USB-C, 3 x USB A 3.2, Bridged 2.5gb Ethernet ports

Optional Modular Output Boards: Standard DAC, Performance DAC, SPDIF and PhoenixUSB Board. User-accessible M2 NVMe SSD storage (slot used if ordered with factory-fitted storage)

Prices from $3100

LPS1

Highly recommended optional Linear Power Supply upgrade for Stream1 offering improved sound quality in matching chassis.

Features massively oversized 150VA power transformer, Mundorf capacitor bank. Dual power outputs: 1 x 19v output for Stream1, 1 x 5v for accessories.
Grounding port (chassis, 4mm socket).
Backwards compatible with ZENmini Mk3 and PULSEmini.

The positive affect of a good linear power supply cannot be overstated.

Price $1600 or $1280 when bundled with STREAM1

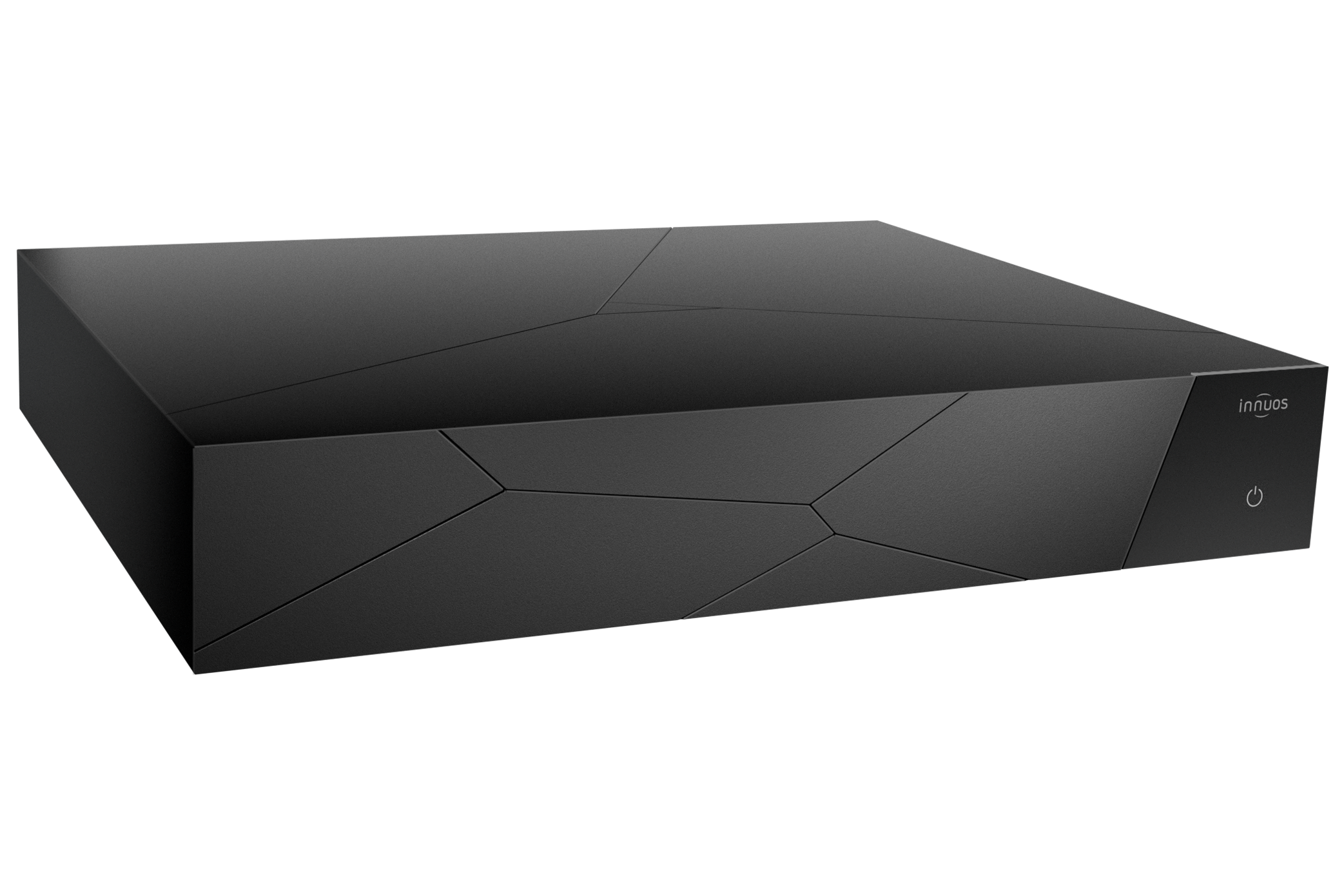

STREAM3

An enthusiast-level streamer and server, benefitting from premium chassis and high-level linear power supply using AR6-CX technology.
Modular storage and output design, supporting the full range of modules including high-end DAC and Digital solutions. Stream3 takes the same mainboard platform of Stream1 but with further improvements.

Features include:

Premium 10mm CNC-machined Aluminium chassis, 300VA power transformer and AR6-CX power supply module module combining 132,000uf of Mundorf capacitance, active rectification and CX regulation on a single circuit board.
Able to facilitate high-end Phoenix DAC module and onboard dedicated PSU
User-accessible M2 NVMe SSD storage (slot used if ordered with factory-fitted storage)
Optional Modules: Standard DAC, Performance DAC, Phoenix DAC, SPDIF output, Phoenix USB re-clocker and Phoenix I2S output.

Prices from $8,000

ZEN Next-Gen

A revelation in sound, performance and flexibility, the ZEN Next-Gen
series is a high-end range of modular music servers and streamers
benefitting from premium NGaN power regulation, heavily tuned
PreciseAudio board, AudioCore technology with high-performance
CPU & RAM and more.

Intel i3 processor, TLC OS SSD, RECAP6 NGaN PSU, 150VA Power transformer, PreciseAudio Mainboard, 16GB DDR4 RAM, Expandable Storage System, 10mm Aluminium Chassis, Sense 3 AudioCore & RTK technology
PCI-E NVme internal SSD in 2TB, 4TB, or 8TB options. 16TB option occupies both internal and secondary user-accessible storage bay
Optional Modular Output Boards: SPDIF outputs, Phoenix USB re-clocker and PhoenixI2S output.
*Upgradeable to ZENith Next-Gen*

Prices from $13,750

ZENith Next-Gen

Improves on ZEN Next-Gen with superior Power Supply, Processor and OS SSD designs for a breath taking level of performance and
definition.

Intel i7 processor, pSLC OS SSD, ARC6 NGaN PSU, 300VA PowerTransformer, PreciseAudio Mainboard, 16GB DDR4 RAM, Expandable Storage System, 10mm Aluminium Chassis, Sense 3 AudioCore & RTK technology
PCI-E NVme internal SSD in 2TB, 4TB, or 8TB options. 16TB option occupies both internal and secondary user-accessible storage bay
Optional Modular Output Circuit Boards: SPDIF output board, PhoenixUSB re-clocker board and PhoenixI2S output board.

Prices from $21,700

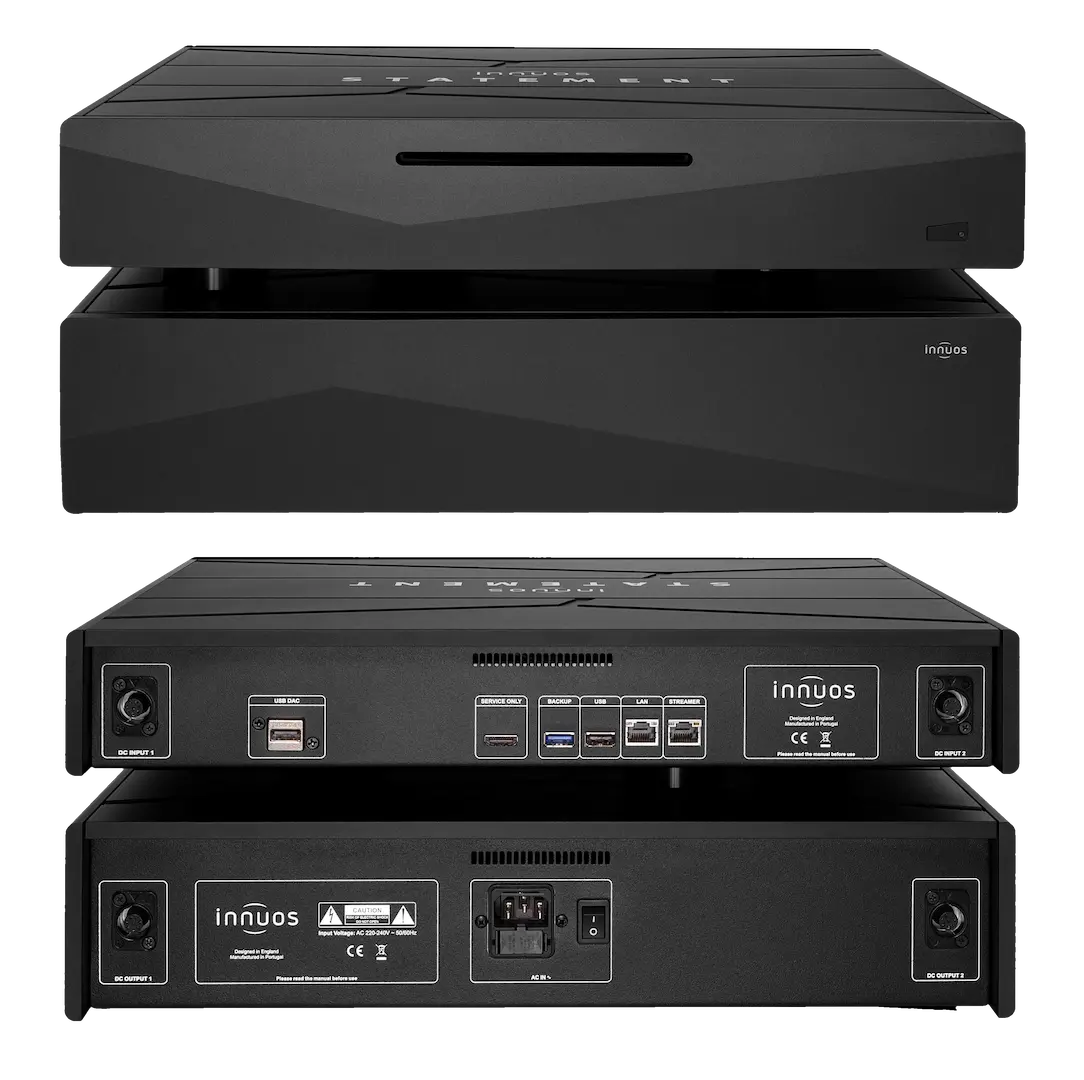

STATEMENT Next-Gen

Innuos flagship server, designed to take Digital Audio to a new level of
performance. A state-of-the-art source for the most discerning
audiophiles.

Features include:

10mm CNC-machined aluminium chassis, custom mainboard exclusively designed for Innuos, 8GB RAM with 4GB In-Memory Playback, EMI-optimised motherboard exclusively designed for Innuos. Quad-core Intel Processor, Custom Ethernet and USB Reclockers with 3bpp OCXO clocks. Asymmetrical isolation feet. Custom ARC6 AC/DC modules with high-precision. Active Rectifier board, 10mH DC Choke and 4 times the capacitance. All linear power supply rails use Audio Note KAISEI capacitors. Boosted CPU current. New Adaptive Vibration Control platform using Panzerholz wood.

Prices from $27,500

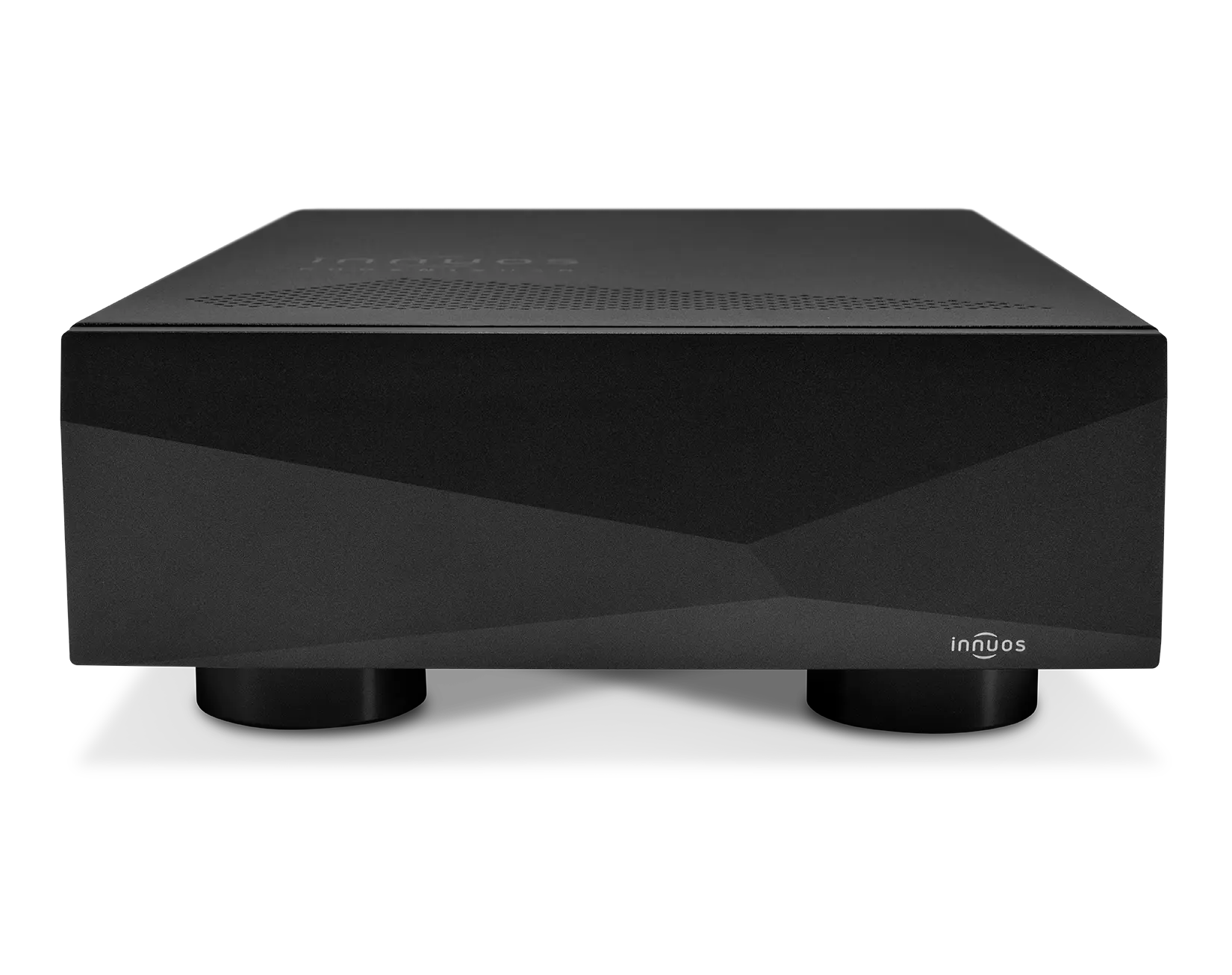

Phoenix USB and Phoenix NET

The PhoenixUSB regenerates and re-clocks the USB signal to an extremely high-precision level to feed into your DAC. Adding the Phoenix USB significantly reduces glare and extraneous high frequency artifacts and improves precision and focus. The result is sound that is easier on the ear, and is cleaner and more natural. There are other USB re-clocking products available, many at lower cost, but none are executed as well as the Phoenix and have such a beneficial affect on the sound. Once again, the benefits of a well designed linear power supply really shines through.\

Features include:

– Two independent Linear PSU with Mundorf capacitors
– 3ppb OCXO clock running at 24MHz
– No switching regulators on USB chip. Voltages to the chip originate rom independent linear power and LT3045 regulators.

The PhoenixNET is an Audiophile Network Switch designed from the ground-up for audio. Household cable routers use low quality switch mode power supply units which polutes the digital data stream with high frequency switching noise. If left untreated, this noise will degrade the performance of your music server or streamer. The Phoenix NET isolates the digital data from the noisy power supply giving cleaner, more precise and more natural sound. Unlike other isolators, which use switch mode supplies themselves, the PhoenixNET uses high quality linear power supplies.

– Two independent Linear PSU with Mundorf capacitors
– 3ppb OCXO clock running at 25MHz
– No switching regulators in network chip. Voltages to the chip originate from independent linear power
– Network Isolation Transformers for noise isolation from router.

Pricea $4,800 or $3,840 when bundled with a ZEN NG, ZENith NG or STATEMENT NG
